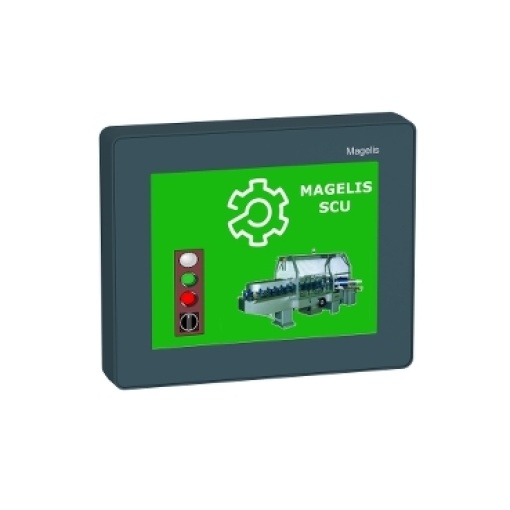

3,5" ecrã táctil a cores módulo frontal TFT LCD sem logo Schneider
Programmable Logic Controllers and Dialogue Terminals
3,5" ecrã táctil a cores módulo frontal TFT LCD sem logo Schneider
Manufacturer Ref:
HMIS65W
Nortécnica Ref:
EAN:
3595864153285
Description
Technical Information
Attributes
Built-in depth
74.95
Suitable for safety functions
No
Screen diagonal
3.5
Operating temperature
0
50
Voltage type supply voltage
AC/DC
Supporting protocol for LON
No
Number of HW-interfaces industrial Ethernet
1
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces other
1
Supporting protocol for TCPIP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Colour display
Yes
Number of colours of the display
65000
Number of pixels, horizontal
320
Number of pixels, vertical
240
Number of function buttons, programmable
0
With numeric keyboard
No
With alpha numeric keyboard
No
Usable project memoryuser memory
128000
With message indication
Yes
With message system incl. buffer and confirmation
Yes
Process value representation output possible
Yes
Process default value input possible
Yes
With recipes
Yes
Number of password levels
0
With printer output
No
Number of online languages
8
Additional software components, loadable
Yes
Degree of protection IP, front side
IP65/IP67
With SW interfaces
No
Width of the front
128
Height of the front
102
Suitable for rail mounting
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Number of interfaces PROFINET
0
Number of HW-interfaces wireless
0
Wall mountingdirect mounting
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Type of display
TFT
Number of grey-scalesblue-scales of display
16
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G UMTS
No
Number of buttons with LED
0
Number of system buttons
0
Touch technology
Resistive touch
Degree of protection NEMA, front side
-
Brands
Schneider
